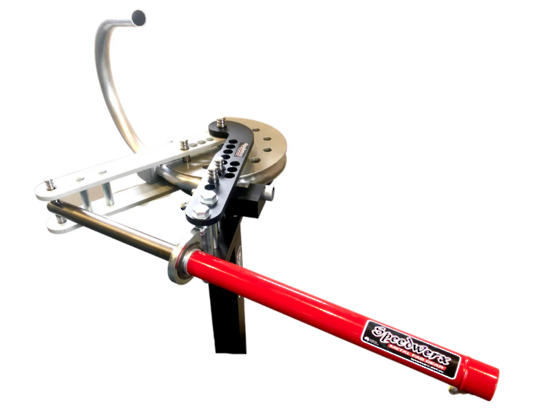

M2BENDAS Speedwerx Tube Bender Model 2 Air Hydraulic with Fabricated Stand
larger imageMove mouse over the image to magnify
M2BENDAS

M2BENDAS Speedwerx Tube Bender Model 2 Air Hydraulic with Fabricated Stand

NZ $3,895.00 NZ $3,699.00 Save NZ $196.00 Incl. GST
Qty.
M2BENDAS Speedwerx Tube Bender Model 2 Air Hydraulic with Fabricated Stand
Logo small

Speedwerx Model 2 Tube Bender with air over hydraulic actuation is designed and manufactured in Australia by Speedwerx Racing Products. This version of the Model 2 bender offers a "no sweat" approach to doing repetitious or one off bending whilst still maintaining exceptional bend quality which surpasses the requirements for CAMS and ANDRA specification rollcages. Designed predominately for vehicle chassis builders this bender is now used by many different industries such as automotive, marine, aeronautical and general fabrication.

The Model 2 Air Hydraulic bender has an extensive range of die sets available both in 240 and 120 degree die options. Delrin backing blocks are also available as an option if you are doing work on soft materials and need to minimise the chance of marking the material.

Includes:

  • M2 Manual bender (excludes dies)
  • Fabricated stand 820mm H x 75mm Box section with plates both ends
  • Air over hydraulic 10000psi foot pump and hose with quick connect coupling
  • Speedwerx manufactured ram which allows 2 shot 90 degree bends or 3 shot 180 degree bends
  • Degree Ring
  • Assembly instructions
  • A general workshop compressor is required to operate this bender (Not included)
  • Die sets not included priced separately:

M2 120° die sets also available for:

M2 240° die sets also available for:

View M2 Tube Bender Assembly instructions: click here

View M2 Tube bender die set installation: click here

View M2 Air/Hydraulic demonstration: click here

Box: M2Kit: 300mm x 80mm x 620mm 20Kg
        Stand: 850mm x 230mm x 230mm 10Kg
        Ram : 670mm x 150mm x 120mm 9Kg
        Pump: 370mm x 170mm x 230mm 9Kg
